12mm 3.5mm double bracket Galvanized Steel Pole for square light usage

प्रमाणन
चीन Jiangsu milky way steel poles co.,ltd प्रमाणपत्र
चीन Jiangsu milky way steel poles co.,ltd प्रमाणपत्र
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

मैं अब ऑनलाइन चैट कर रहा हूँ

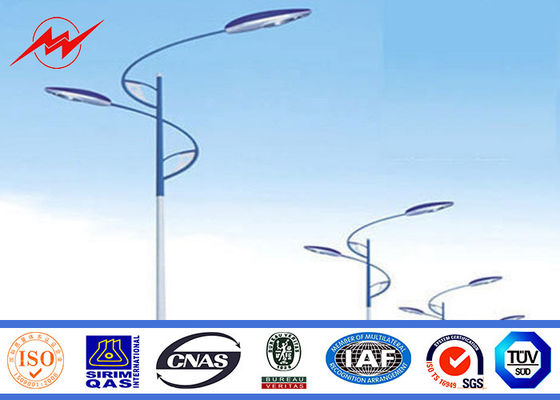

12mm 3.5mm double bracket Galvanized Steel Pole for square light usage

चीन 12mm 3.5mm double bracket Galvanized Steel Pole for square light usage आपूर्तिकर्ता
12mm 3.5mm double bracket Galvanized Steel Pole for square light usage आपूर्तिकर्ता 12mm 3.5mm double bracket Galvanized Steel Pole for square light usage आपूर्तिकर्ता 12mm 3.5mm double bracket Galvanized Steel Pole for square light usage आपूर्तिकर्ता 12mm 3.5mm double bracket Galvanized Steel Pole for square light usage आपूर्तिकर्ता

बड़ी छवि :  12mm 3.5mm double bracket Galvanized Steel Pole for square light usage

उत्पाद विवरण:

Place of Origin: Yixing,Jiangsu,China
ब्रांड नाम: Milky Way
प्रमाणन: ISO9001
Model Number: Street Light Poles

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 Poles
मूल्य: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
विस्तृत उत्पाद विवरण
Pole section: Single section Painting color: Black and white color
Light Wattage: 30w to 60w LED light Arm Type: one or two arms
Surface Treatment: galvanization and powder coating Pole Shape: Round,octagonal
Average gavanzation thickness: according to the pole thickness
हाई लाइट:

galvanised steel poles

,

steel transmission poles

12mm 3.5mm double bracket Galvanized Steel Pole for square light usage



Quick Details for Galvanized Steel Pole



Item No

 12mm 3.5mm double bracket Galvanized Steel Pole for square light usage

Height

 12M

Thickness

 3.5mm wall thickness,or customized design are available

Shape

 According to customer's design or our standard shape such as Conical,round,octagonal,dodecagon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Q460, minimum yield strength>=460n/mm2

Wind Design

 32m/s,160km/h

Suit for

 Highway,state highway,garden



Options and Accessories



•Milky Way Street Lighting poles are base plate mounted as standard but can be designed for in-ground mounting

•The poles are hot dip galvanized and can be powder coated or painted in the colour of your choice

•The range is available in tapered octagonal only

•Standard mounting heights are 4m to 12m

•Standard outreach lengths are 1.5m to 3m

•The standard poles are depicted on this product sheet, however they can be designed for differing heights and outreach lengths

•Milky Way poles are also available in a Seesaw configuration, refer to the Lowering Systems brochure for further information.

•Preassembly

•Pre cabling

•Installation



Pole Type



12mm 3.5mm double bracket Galvanized Steel Pole for square light usage 0



Flange Mounted Type

More information,please contact with us.

12mm 3.5mm double bracket Galvanized Steel Pole for square light usage 1









MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.



FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.





SHAPE



Anchor Bolts

• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"

• Hot dip galvanized

• Supplied as optional product

• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for

24" X 3/4". Higher grades for larger sizes.

• Supplied with hexagon nut and washer

Nut & Bolt Cover

• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.

• High strength polyurethane

• Available in colours

Handhole

•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover

The standard tenon size is 2 3/8" O.D. by 7" long.

Any designs not shown in this catalogue can be produced by Nova Pole International

and inquiries should be communicated to company representatives.

Approval drawings are available on request.

All measurements shown here are imperial measure (inches, square inches and feet)

unless otherwise noted.



Pole Mounted Type



Flange Based

Ground Planted

Shear Based

12mm 3.5mm double bracket Galvanized Steel Pole for square light usage 2



Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
