|Type:||straight pole, tensile pole,turn pole||Suit for:||electricity distribution|
|Power:||10kv~550kv||Tolance of dimenstion:||+-2%|
|Shape:||conoid ,multi-pyramidal,columniform，polygonal or conical||Design of pole:||against earthquake of 8 grade|

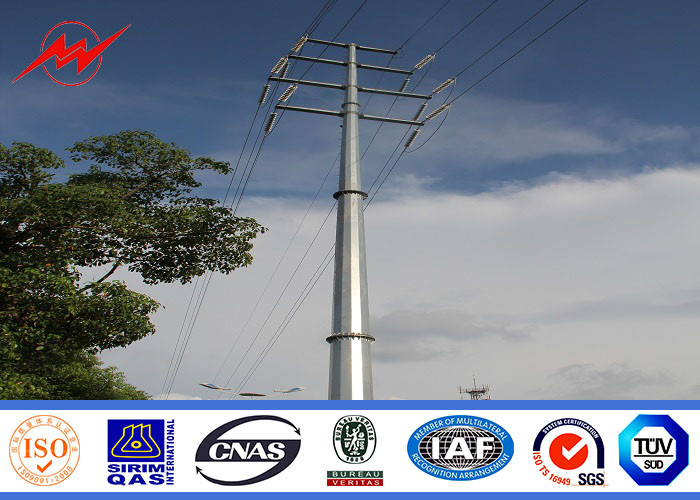

Because of the long and thin shape, closed polygonal section and apply of high strength steel material, these steel poles have excellent durability. They can withstand the extreme condition, such as the frost climate, unbalanced loads, or breaking of wire.
The designing weight of the steel poles are usually relatively light and is good for the operation, transportation, assemble and installation.
The hot dip galvanization treatment can increase the service life of the steel pole without the environmental pollution and no need for other daily maintenance. The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.

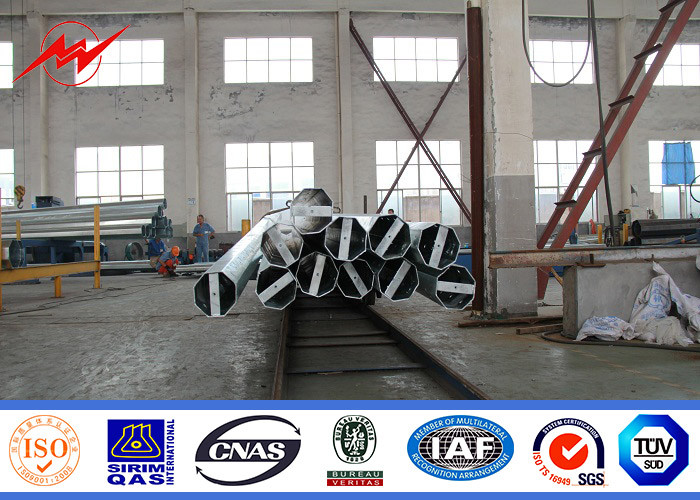

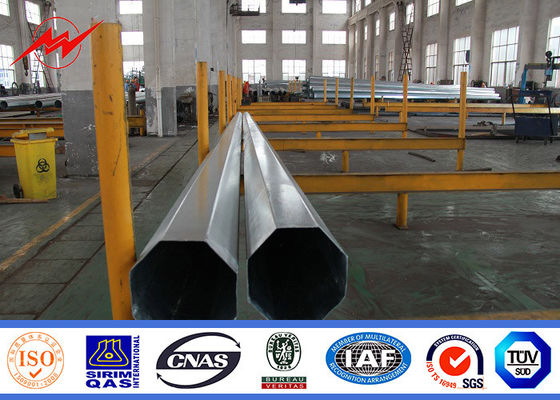

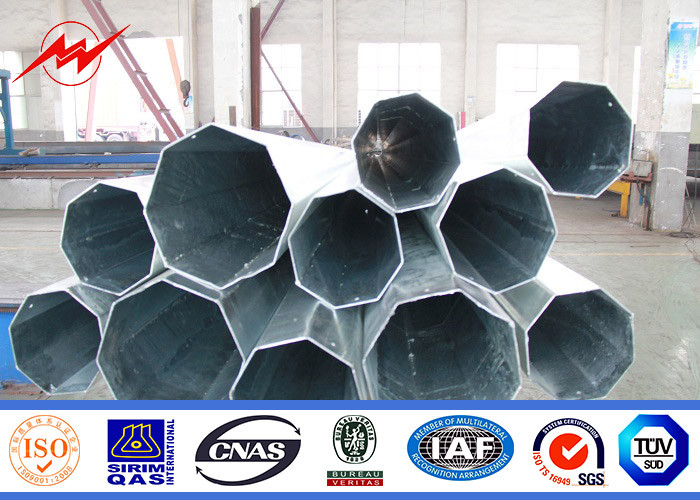

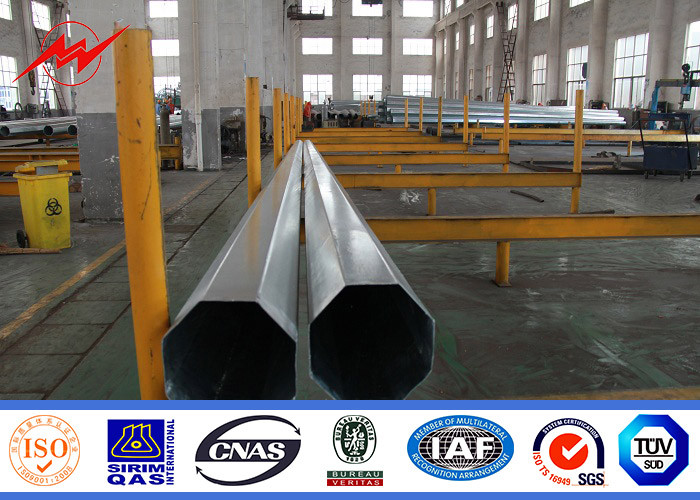

Our steel pole is bent to form to the polygonal (conical) section firstly. Then it is welded by the automatic submerged-arc. Then it is welded by the automatic submerged-arc welding machine.
Thirdly the top cap, strip and base plate will be welded to the pole. And finally other accessories (support brackets, ladder support, etc.) will be welded to the pole shaft.
The galvanization of the steel pole are under strict control. Galvanization is achieved by immersion in a molten zinc bath(450̊) after pre-treated (dipping).
The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around 2 times of design load.
