55ft Electrical Power Pole 3mm Thickness Powder Coating With Galvanized Stepped Bolt

55ft Electrical Power Pole 3mm Thickness Powder Coating With Galvanized Stepped Bolt

Featuring a streamlined, aesthetic shape, this structure is less massive than other towers, allowing it to blend easily into the environment. For this reason, it's being used more and more in urban centres. Measuring between 27 and 45 metres in height, it's suitable for voltages ranging from 110 to 315 kV.

Applications:

Transmission Applications
Light Duty Steel Poles
Custom Design Transmission Poles
Steel H-Frame Poles

Substation Applications
Dead End Structures
A-Frames and H-Frames
Special Application Structures
Low Side Supports – Buss, Switch, and Other equipment
Static and Shield Wire Poles

Technical Data Sheet(F=10KN)

Standard Accessory

-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder

Available Foundation Types

Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson

Available Finishes

Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating

Standard Features of in-ground and base plate mounted

In-Ground Mounted:

12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish

Base Plate Mounted:

12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish

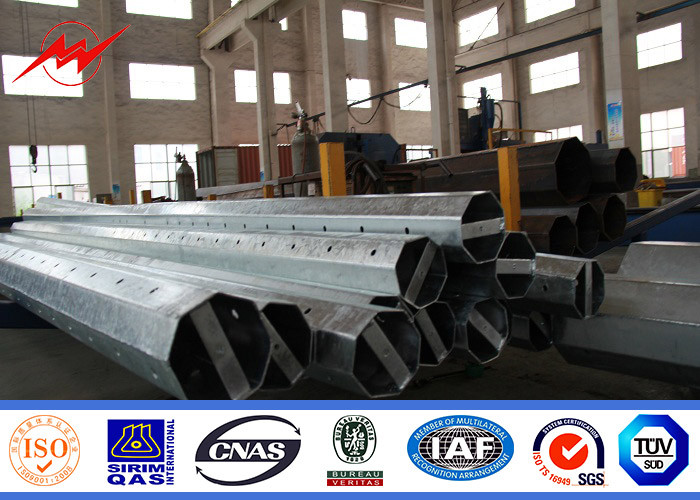

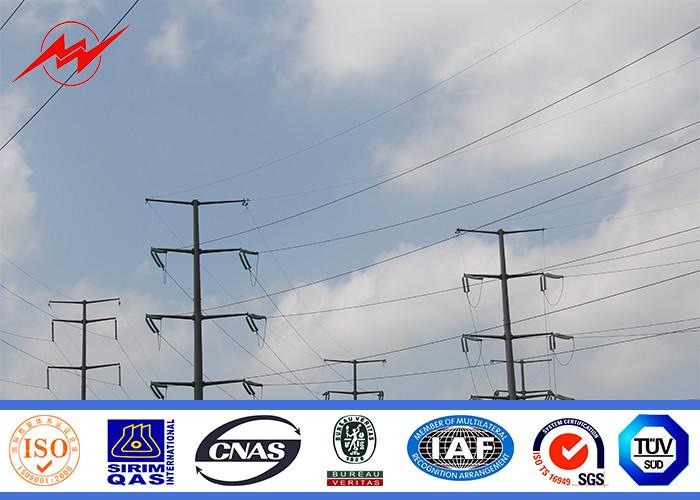

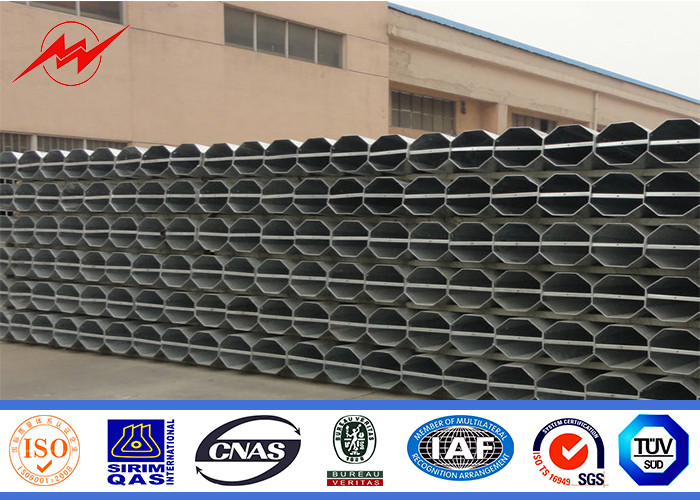

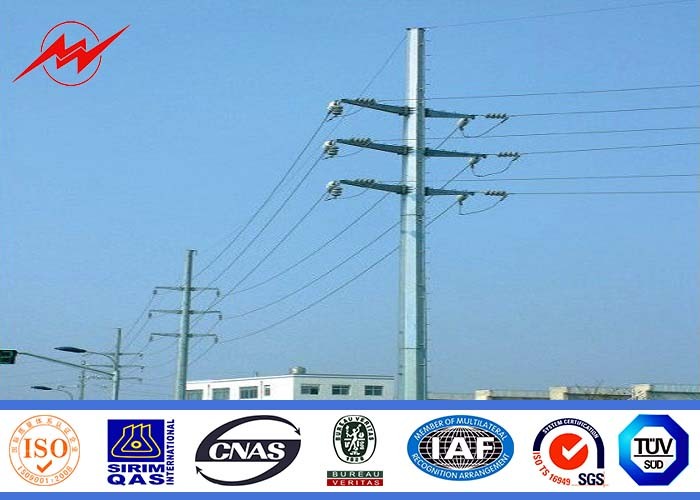

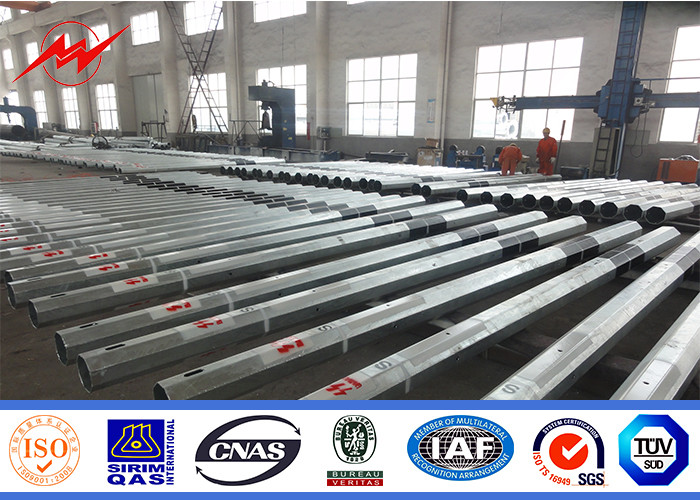

Product Gallery

The information to inquiry or purchase

-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.

Design

Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
