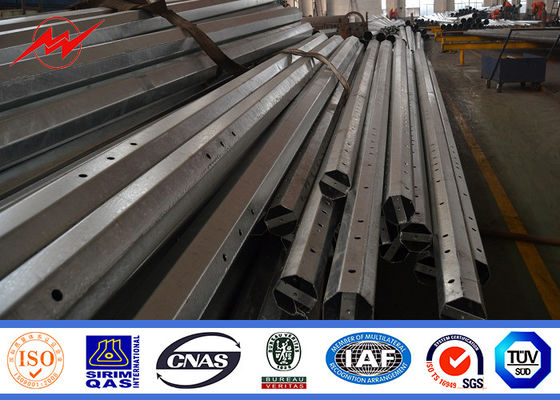

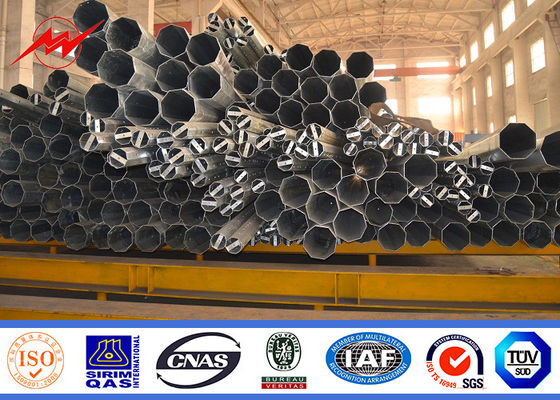

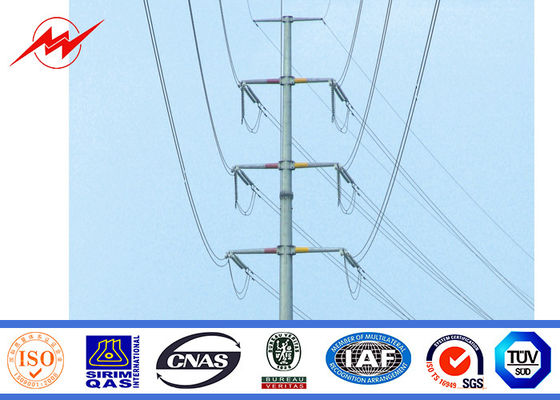

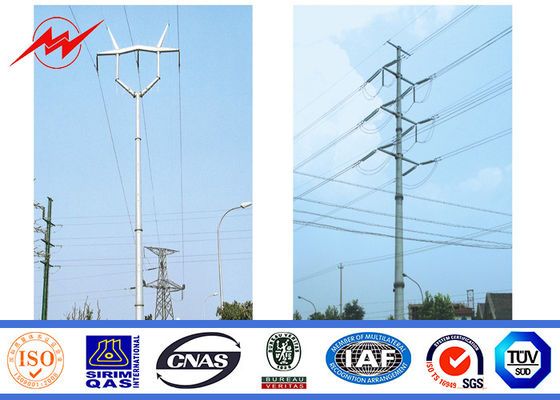

Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution

चीन Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution आपूर्तिकर्ता
Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution आपूर्तिकर्ता Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution आपूर्तिकर्ता Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution आपूर्तिकर्ता Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution आपूर्तिकर्ता

बड़ी छवि :  Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: MilkyWay
प्रमाणन: ISO9001/BV/SGS
Model Number: Electric Power Pole

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 pcs
मूल्य: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
विस्तृत उत्पाद विवरण
Product Name: Electric Power Pole Application: Power Transmission
Galvanization standard: Hot dip galvanization Wind speed: 30m/s
Lift time: 50 years Warranty: 15 years

Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution





 Specifications:



Suit for

Power Transmission

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages





 Parameter:
 1.Type: Straight Pole, Tensile Pole, Turn Pole
 2.Max length per section: 14 m
 3.Thickness: 2.5mm ~ 30 mm
 4.Shape: Conical or polygongal tapered
 5.Material: Q235B/A36/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
 Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
 Q390/A633 M Gr.50/St E380
 Q460/A572 M.Gr.65
 6.Power: 10 KV ~ 550 KV
 7.Finish: hot dipgalvanization, blasting, powder coating, painting.
 8.Galvanization standard: ASTMA 123 / EN ISO 1461
 9.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2







 The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.





Conical Gr65 Material 22m Electric Power Pole 2 Sections for 110KV Power Distribution
