Electric Power Transmission Line Steel Tubular Pole 10kV Hot Dip Galvanized

बड़ी छवि : Electric Power Transmission Line Steel Tubular Pole 10kV Hot Dip Galvanized

उत्पाद विवरण:

उत्पत्ति के प्लेस:	China
ब्रांड नाम:	MilkyWay
प्रमाणन:	ISO9001/BV/
मॉडल संख्या:	10kV hot dip galvanized electric power transmission line tubular steel pole

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 pcs
मूल्य:	Negitiation
पैकेजिंग विवरण:	As customer request
प्रसव के समय:	20 working days after received your payment
भुगतान शर्तें:	T/T, L/C st sight
आपूर्ति की क्षमता:	300pcs per day

संपर्क करें

विस्तृत उत्पाद विवरण

Product Name:	10kV hot dip galvanized electric power transmission line tubular steel pole	certificate:	ISO9001
warranty time:	15 years	tolerance:	+/-2%
material:	Alloy steel	colar:	any
हाई लाइट:	metal power poles , electric utility poles

10kV hot dip galvanized electric power transmission line tubular steel pole

Specification:

Product name	10kV hot dip galvanized electric power transmission line tubular steel pole
Wind Speed	160 Km/Hour
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

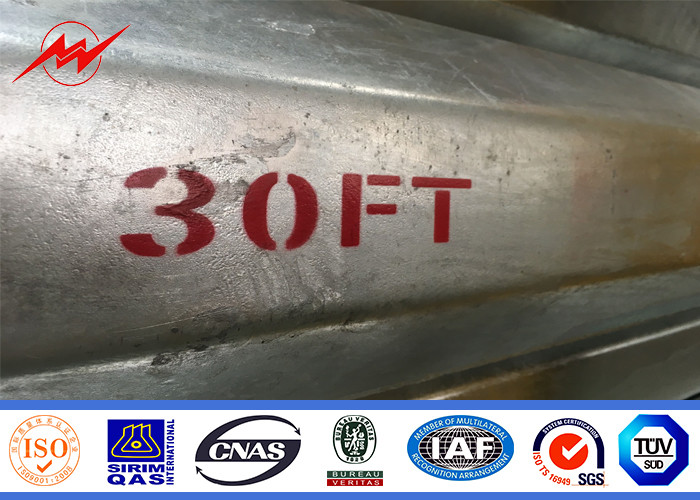

Electric Power Transmission Line Steel Tubular Pole 10kV Hot Dip Galvanized 0

Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

Competitive Advantage:

1.Easy work: more than 23 years pole field. quickly understand your meaning and let you get your result.

2.Lowest MOQ: lowest quantity from 1Ton depends on different style .

3.OEM Accepted: We can produce any pole of your design.

4.Good Service: We treat clients as friends.

5.Good Quality: We have very strict quality control system .Good reputation in the market.

6.Fast & Cheap Express service: We have big discount from forwarder (Long-term Contract with TNT,DHL,UPS,FEDEX,EMS ).

7.Manufacturer Capacity : 300 pieces/day.

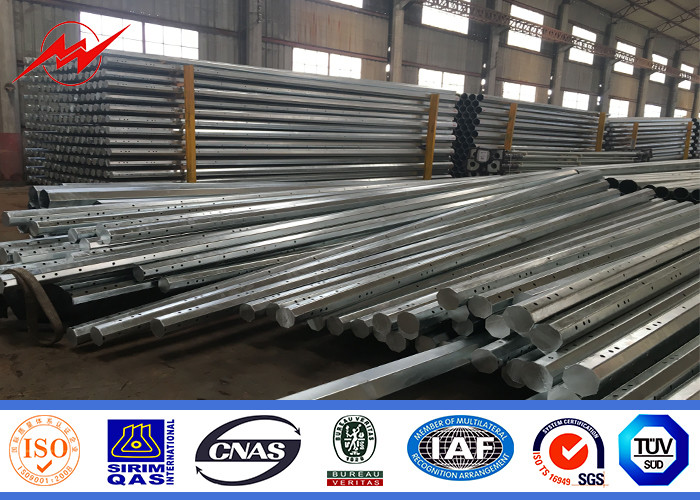

Electric Power Transmission Line Steel Tubular Pole 10kV Hot Dip Galvanized 1
