Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting

प्रमाणन
अच्छी गुणवत्ता विद्युत पावर बिक्री के लिए
अच्छी गुणवत्ता विद्युत पावर बिक्री के लिए
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

मैं अब ऑनलाइन चैट कर रहा हूँ

Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting

चीन Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting आपूर्तिकर्ता
Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting आपूर्तिकर्ता Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting आपूर्तिकर्ता Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting आपूर्तिकर्ता Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting आपूर्तिकर्ता

बड़ी छवि :  Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: MilkyWay
प्रमाणन: ISO9001/BV/SGS
Model Number: Galvanized Steel Poles

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1 pcs
मूल्य: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
विस्तृत उत्पाद विवरण
Product Name: Galvanized Steel Poles Welding standard: AWS D 1.1
Material: Q235 Height: 3-15m
Warranty: 15 years Thickness: As the demands

 Hot Gip Galvanization 9m Solar Steel Poles Led Light for Highway Lighting





 Specifications:



Height

From 3 m to 15 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

SS400, SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Optical assembly of lighting fixture

IP 65

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

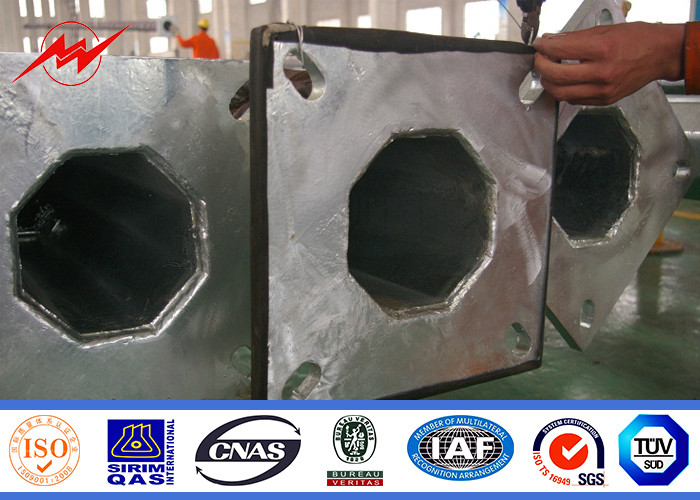

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding

makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

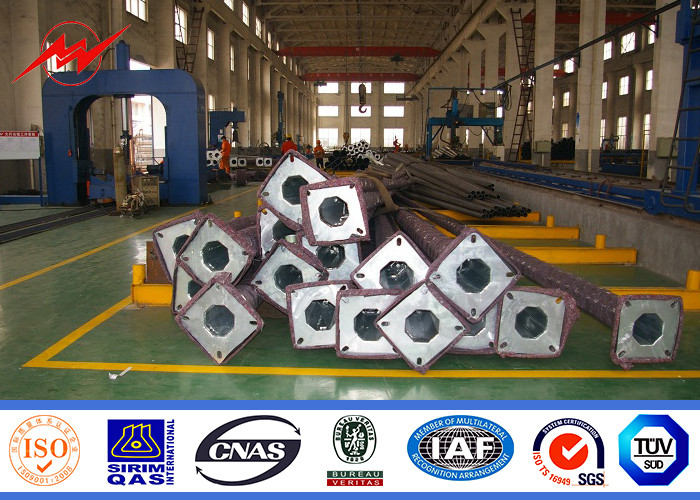

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

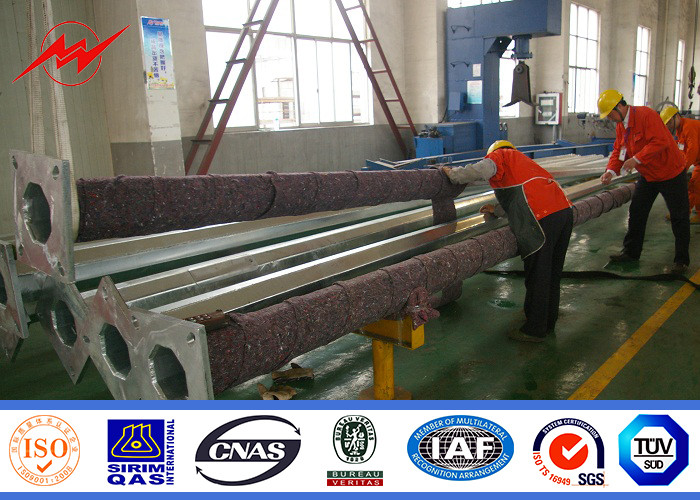

Packages

Our poles as normal cover by Mat or straw bale at the

top and bottom ,
anyway also can following by client required , each 40HC

or OT can
loading how many pcs will calculation base on the client actually
specification and data.

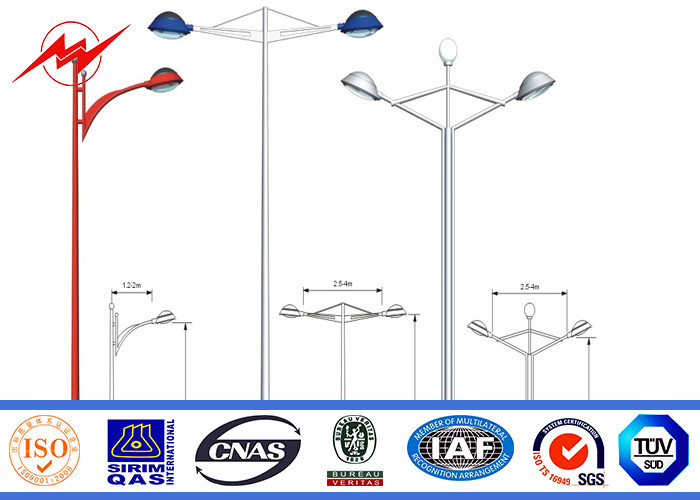

Style

Size and styles are veriable as per customer request





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 - Yield Strength=355N/mm2
 - Toughness remains the same under 20 degrees below zero.
 - Galvanization is in accordance with NFA35503 Standard Class 1.

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting





 Application:
 Highway Seamless Steel Pipe                                Park Seamless Steel Pipe
 Main Roads Seamless Steel Pipe                         Dock Seamless Steel Pipe
 Secondary Roads Seamless Steel Pipe              Stadium Seamless Steel Pipe
 Storage-yar Seamless Steel Pipe                         Overpass Seamless Steel Pipe
 Industrial-Plant Seamless Steel                            Toll-Station Seamless Steel Pipe

 Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

 Waterproof Hot Dip Galvanization 9m Solar Light Poles for Highway Lighting
