9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission

चीन Jiangsu milky way steel poles co.,ltd प्रमाणपत्र
चीन Jiangsu milky way steel poles co.,ltd प्रमाणपत्र
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

मैं अब ऑनलाइन चैट कर रहा हूँ

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission

चीन 9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission आपूर्तिकर्ता
9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission आपूर्तिकर्ता 9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission आपूर्तिकर्ता 9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission आपूर्तिकर्ता 9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission आपूर्तिकर्ता

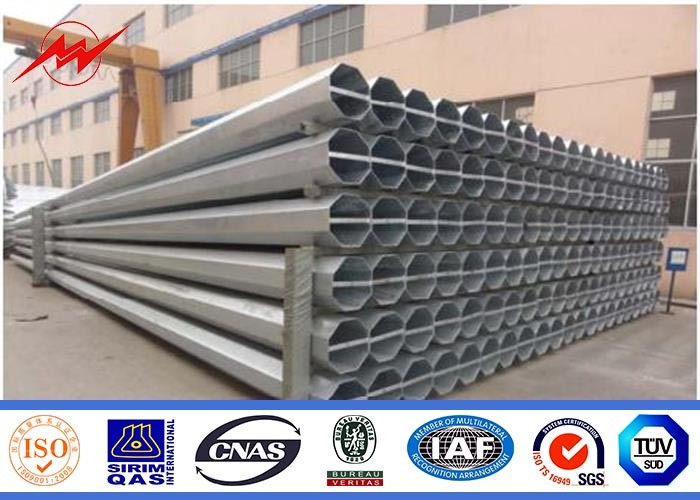

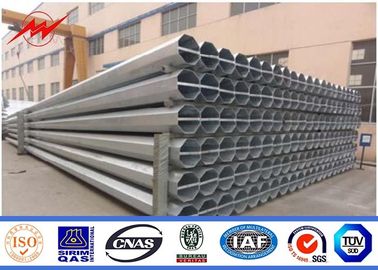

बड़ी छवि :  9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission

उत्पाद विवरण:

उत्पत्ति के प्लेस: China
ब्रांड नाम: Milky Way
प्रमाणन: ISO, BV,
मॉडल संख्या: 9M 11M Q345 electrical Steel Utility Pole for Africa power transmission

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 1 pc
मूल्य: negotiation
पैकेजिंग विवरण: as per customer request
प्रसव के समय: usually 2 weeks after confirming
भुगतान शर्तें: T/T
आपूर्ति की क्षमता: 300 pieces pole per day
विस्तृत उत्पाद विवरण
Suit for: electricity distribution Power: 10kv~550kv
Thickness: 1mm to 30mm Design of pole: against earthquake of 8 grade
Torelance of dimenstion: +- 2% Wind speed: 160km/h, 30m/s
हाई लाइट:

metal utility poles

,

electrical utility poles

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission



Specification:



Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal , Columniform,polygonal or conical


Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
               Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Tolerance of dimension

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg applied to 50cm from the top pole

Marks

Nane plate through rivert or glue ,engrave ,emboss as per customer
requirement

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We have past flaw testing. Internal and external double welding makes
the welding beautiful inshape Welding Standard :AWS ( American
Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Raw material test → Cutting →Molding or bending →Welding
(longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration→ Deburr →Galvanization or powder coating ,painting
→Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required ,each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.



Technical Parameter:



top end inner diameter (mm)

Tread (mm)

Running wheel diameter (mm)

Length (m)

150

2000

600

7-12

170

2000

600

7-12

190

2000

650

7-15

230

2000

650

6-9

300 equal diameter

2000

600

6-9

350 equal diameter

2000

650

6-12

310

2000

650-780

6-15

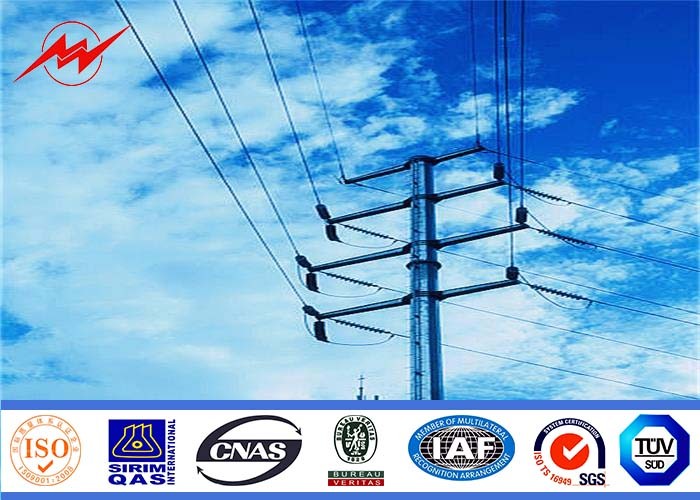

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission 0



Introduction:



The lamp poles, electrical poles, power poles, transmission poles, road lamp poles, street lighting poles, street lamp pole , outdoor lighting pole,outdoor light pole,street lighting ,lighting pole , lighting , road lighting pole , road light pole ,road lamp pole ,steel pole, light pole, lighting pole ,street pole ,road pole,poles ,high mast poles, mast pole and traffic single pole are made by hot –roll coil , the material can be Q235 ,Q345,Q460,ASTM A 572 GR65 ,GR65, SS400 ,SS490,ST52-3 or any other client required , the process as cut plate, bending ,forming ,automatic welding ,drill holes ,quality check before galvanized ,hot dip galvanized or powder coating ,final quality check according by client required.

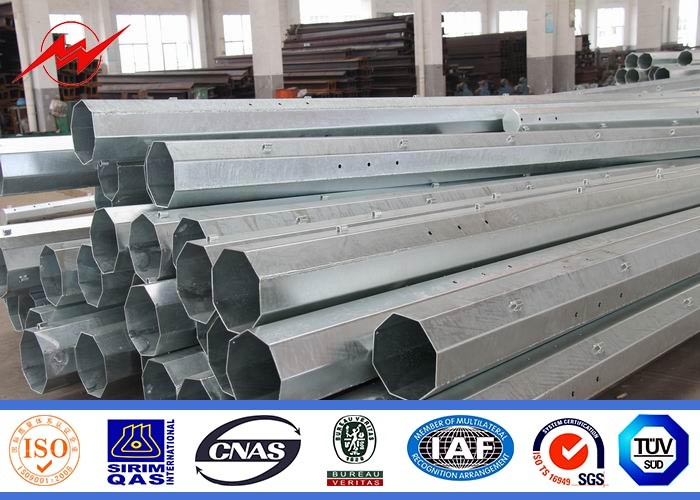

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission 1





Features:



1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).

2. Crack resistance can increase about 3~5 times.

3. Rigidity increases 1~3 times.

4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

5. Good durability, can delay the existence and expansion of cracks.

6, Protect the environment on which human beings depend on for existence, and reduce the deforestation

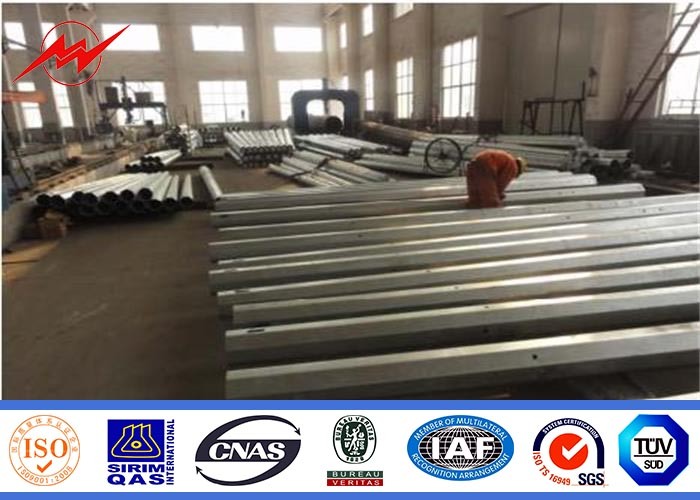

9m 11m Electrical Power Pole Street Light Poles For Africa Power Transmission 2
