18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower
मूलभूत गुण
उत्पत्ति का स्थान:
जियांगसु, चीन
ब्रांड नाम:
MilkyWay
मॉडल नंबर:
स्टील इलेक्ट्रिक पोल्स, इलेक्ट्रिक पोल
व्यापारिक संपत्तियाँ
न्यूनतम आदेश मात्रा:
100
कीमत:
$99-120
उत्पाद सारांश
18m Steel Utility Power Poles for 33kV Transmission Line Tower High-quality steel power poles made from Q235, Q345, and Q420 materials, designed for 33kV transmission lines with superior durability and performance. Product Specifications Type Octagonal NGCP 69KV Galvanized electric steel power pole ...
उत्पाद कस्टम विशेषताएँ
प्रमुखता देना
18m Steel Utility Power Pole
,33kV Transmission Line Tower
,Q235 Material Electrical Power Pole
वर्तमान मूल्यांकित:
10-200
रेटेड वोल्टेज:
10-220
सतह का उपचार:
गर्म डुबकी गैल्वनीकरण
आयाम सहिष्णुता:
+- 2%
न्यूनतम उपज शक्ति:
355 एमपीए
न्यूनतम तन्यता ताकत:
490 एमपीए
अधिकतम तन्यता ताकत:
620 एमपीए
प्रति अनुभाग लंबाई:
14m के भीतर
मोटाई:
1 मिमी से 30 मिमी
शक्ति सीमा:
10 केवी ~550 केवी
डिजाइन भार:
300 ~ 1000 किलोग्राम
हवा की गति:
160 किमी / घंटा
भूकंप प्रतिरोध:
8 ग्रेड
सुरक्षा कारक:
8
विनिर्माण क्षमता:
प्रति दिन 300 टुकड़े
उत्पाद वर्णन
विस्तृत विनिर्देश और विशेषताएं
18m Steel Utility Power Poles for 33kV Transmission Line Tower
High-quality steel power poles made from Q235, Q345, and Q420 materials, designed for 33kV transmission lines with superior durability and performance.
Product Specifications
| Type | Octagonal NGCP 69KV Galvanized electric steel power pole |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, polygonal or conical |
| Material | Q345B/A572 (minimum yield strength ≥345n/mm²), Q235B/A36 (minimum yield strength ≥235n/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52 |
| Power Range | 10KV ~550KV |
| Safety Factor | 8 for conducting wire, 8 for grounding wire |
| Design Load | 300~1000Kg applied 50cm from top pole |
| Surface Treatment | Hot dip galvanized (ASTM A 123), color polyester powder, or client-specified standard |
| Wind Speed Rating | 160 Km/Hour (30 m/s) |
| Seismic Rating | Earthquake resistant to 8 grade |
| Standard | ISO 9001 |
Production Process
As a BV, ISO, SGS approved supplier in China, we have more than 20 years experience producing and exporting steel poles. We guarantee the quality of our poles, which are made from qualified materials by professional workers using advanced equipment.
Our production process includes:
- Raw material testing
- Cutting
- Molding or bending
- Welding (longitudinal)
- Dimension verification
- Flange welding
- Hole drilling
- Calibration
- Deburring
- Galvanization or powder coating/painting
- Recalibration
- Threading
- Packaging
Material Quality Assurance
All materials are purchased from reputable mill factories to ensure quality. A mill certificate with stamp and signature is required before unloading materials at our factory. All materials undergo chemical and physical analysis before production to verify strength and composition meet requirements.
Certifications
Project Images
Ordering Information
- Price Term: EXW, FOB, CFR or CIF
- MOQ: 1 set for customized orders
- Payment: 30% T/T deposit, balance before shipment
- Delivery Time: 10 workdays after deposit
- Warranty: 30 years
- Surface Treatment: Hot dip galvanization
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Response within 24 working hours
- Factory visits available
After-Sales Service
- Installation training
- Inspection reports and mill certificates provided
- Tensile test documentation

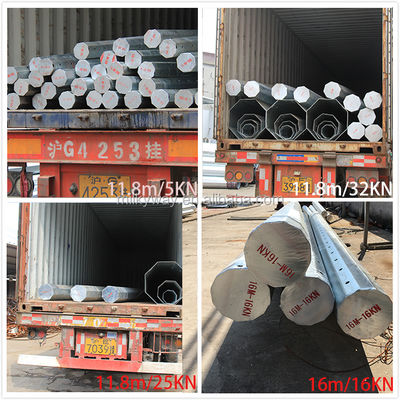

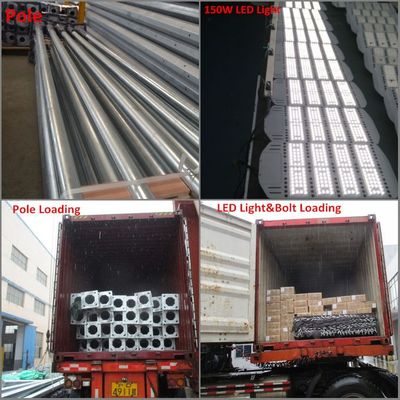

Packaging & Delivery
| Packaging Type | Quantity |
|---|---|
| 40&45FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
| 35FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East China, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and stadiums.
With extensive export experience since our first overseas order to Pakistan in 1991, our products have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
