15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
मूलभूत गुण
उत्पत्ति का स्थान:
जियांगसु, चीन
ब्रांड नाम:
MilkyWay
मॉडल नंबर:
स्टील इलेक्ट्रिक पोल्स, इलेक्ट्रिक पोल
व्यापारिक संपत्तियाँ
न्यूनतम आदेश मात्रा:
100
कीमत:
$99-120
उत्पाद सारांश
15m Tapered Steel Utility Power Poles 2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN Product Specifications Type Octagonal NGCP 69KV Galvanized electric steel power pole Application Electricity distribution Shape Conoid, Multi-pyramidal, Columniform, ...
उत्पाद कस्टम विशेषताएँ
प्रमुखता देना
15m Steel Utility Power Pole
,2.75mm Thickness Steel Utility Power Pole
,850kg Load Steel Utility Power Pole
वर्तमान मूल्यांकित:
10-200
रेटेड वोल्टेज:
10-220
सतह का उपचार:
गर्म डुबकी गैल्वनीकरण
आयाम सहिष्णुता:
+- 2%
वेल्डिंग मानक:
एडब्ल्यूएस डी 1.1
गैल्वनीकरण मानक:
एएसटीएम ए 123
विनिर्माण क्षमता:
प्रति दिन 300 टुकड़े
सामग्री:
Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
शक्ति सीमा:
10 केवी ~550 केवी
सुरक्षा कारक:
8 वायर का संचालन करने के लिए, ग्राउंडिंग वायर के लिए 8
डिजाइन भार:
300 ~ 1000 किलोग्राम शीर्ष पोल से 50 सेमी पर लागू किया गया
हवा की गति:
160 किमी/घंटा (30 मीटर/सेकंड)
न्यूनतम उपज शक्ति:
355 एमपीए
न्यूनतम तन्यता ताकत:
490 एमपीए
अधिकतम तन्य शक्ति:
620 एमपीए
उत्पाद वर्णन
विस्तृत विनिर्देश और विशेषताएं
15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
| Type | Octagonal NGCP 69KV Galvanized electric steel power pole |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material | Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52 |
| Power Rating | 10KV ~550KV |
| Safety Factor | 8 for conducting wire, 8 for grounding wire |
| Design Load | 300~1000kg applied to 50cm from top pole |
| Surface Treatment | Hot dip galvanized (ASTM A 123) or color polyester powder coating |
| Wind Resistance | 160 km/hour (30 m/s) |
| Standards | ISO 9001 |
Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging
Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.
Certifications
Project Examples
Ordering Information
- Price Terms: EXW, FOB, CFR, CIF
- MOQ: 1 set for customized orders
- Payment: 30% deposit by T/T, balance before shipment
- Delivery: Ready within 10 working days after deposit
- Warranty: 30 years
- Surface Treatment: Hot dip galvanization standard
Our Services
Pre-Sales Service
- Inquiry and consulting support
- 24-hour response time
- Factory visits available
After-Sales Service
- Installation training
- Inspection reports and material certificates provided

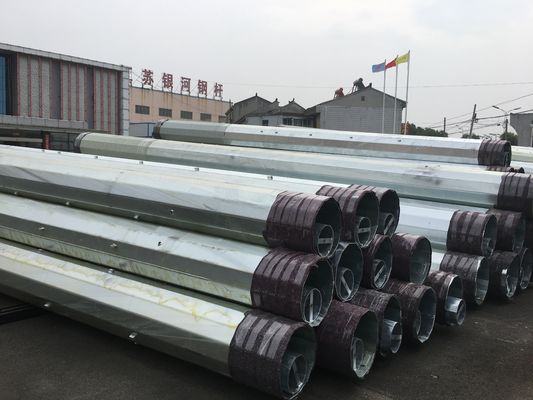

Packaging & Shipping
| Type | Quantity |
|---|---|
| 40&45FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
| 35FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
