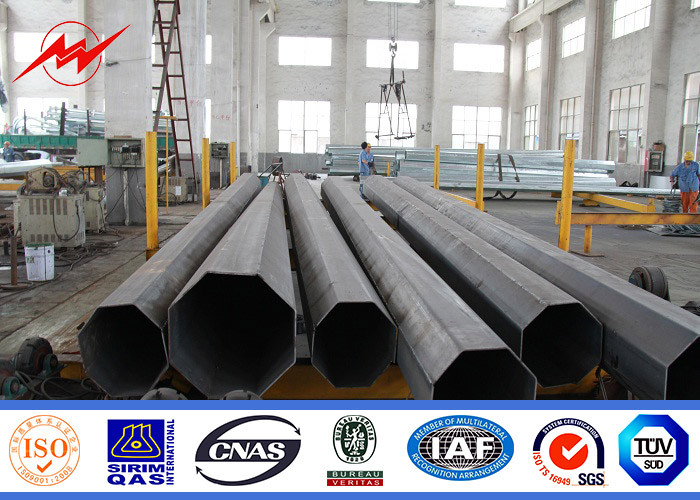

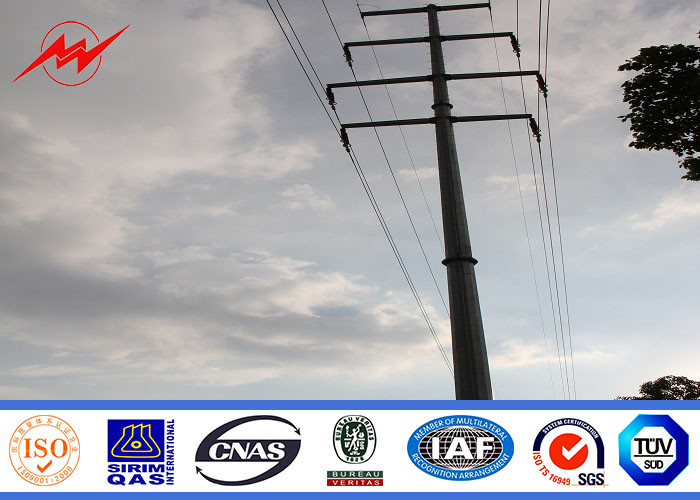

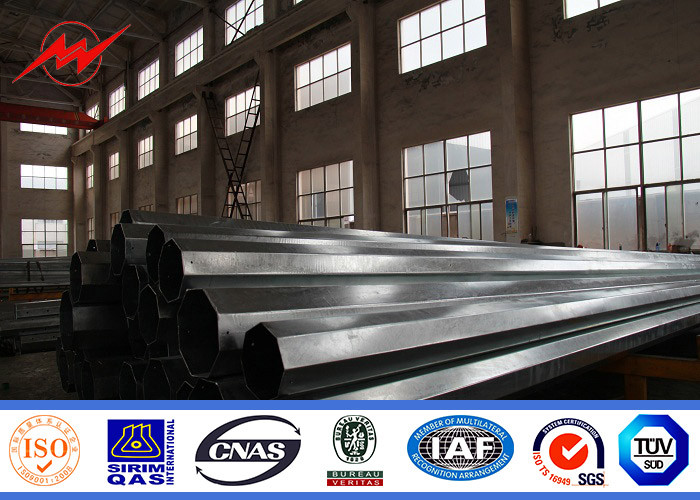

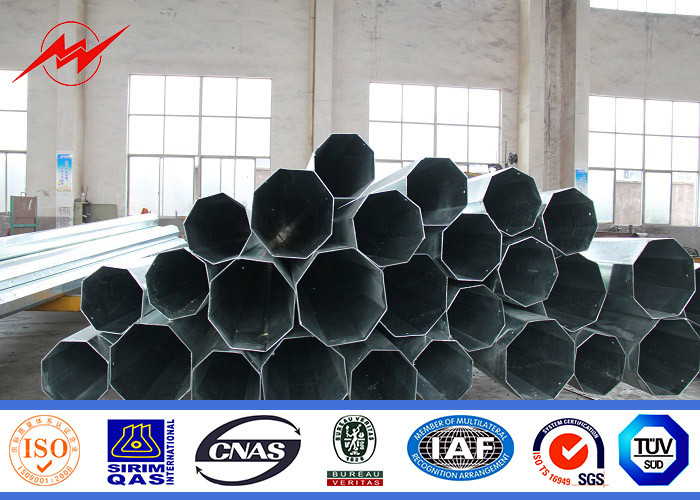

12m 3mm thickness Steel Utility Pole for electrical power line
electrical transmission poles
,high voltage pole
Specification
|
Technical parameters |
1. Height(M):9m |
|
2. Hot dip galvanized, color polyester power or any other standard by client required. |
|
|
3. Welding reached national standards |
|
|
4. Form without slip joint. |
|
|
5. Steel, Q235, conical ,octagonal or polygonal. |
|
|
6. Type: conical, octagonal, or polygonal ,mid-hinged ,taped and other shapes |
|
|
7. Thickness:2-4mm |
|
|
8. Arm: single arm, double arms ,three arms or four arms |
|
|
9. Application: street ,road ,highway, park ,factory ,school Roadway Residential subdivisions Commercial development and so on |
|
|
Production Process |
Raw material test → Cutting →Molding or bending →Welding(longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
|
Customer choice |
1. Height from 6m to 12m |
|
2. Flange mounted or planted type |
|
|
3. Variable arm length with single or double arm type |
|
|
4. Variable spigot size |
|
|
5. Designed for various kinds of application |
|
|
Package |
1. Plastic foam and nylon bag,or upon your request |
|
Delivery |
1. 20days after receiving the deposit |
Key Process
(1)Material Preparation→(2)Bending→(3)Welding→(4)Repair and Grinding→(5)Reforming→(6)Flushing→(7)Fix bottom plate→(8)Welding bottom plate→(9)Opening door→(10)Welding door strip, electric strip, and locking→(11)Bending arm→(12)Hot dip galvanization→(13)Plastic powder painted→(14)Inspection→(15)Shipment
1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Various designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video.
