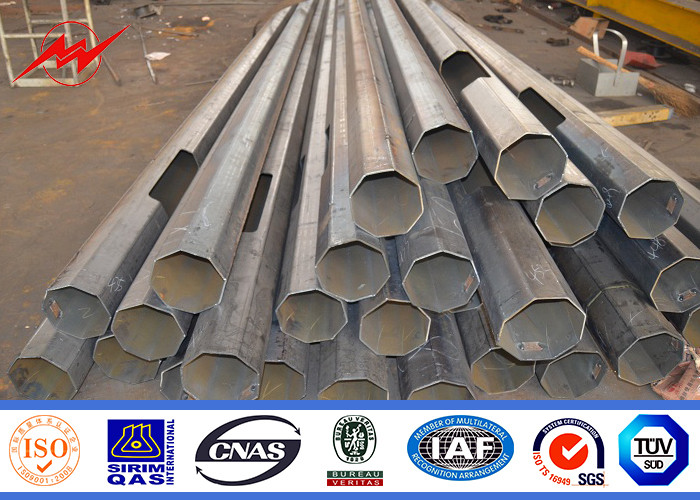

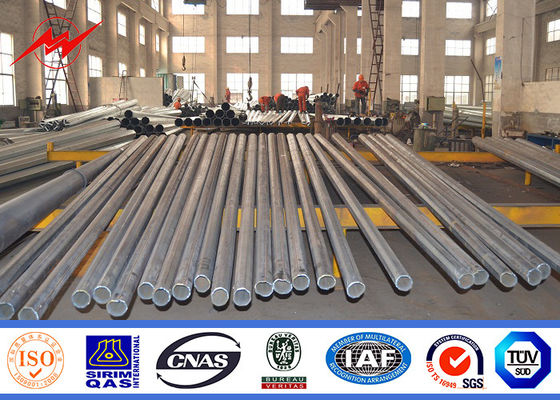

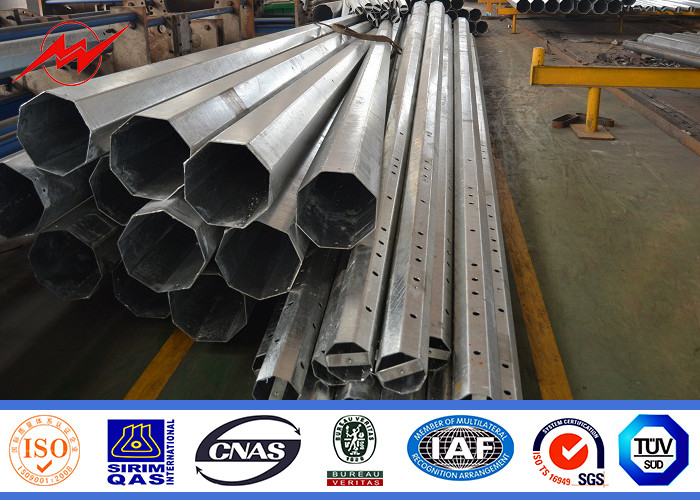

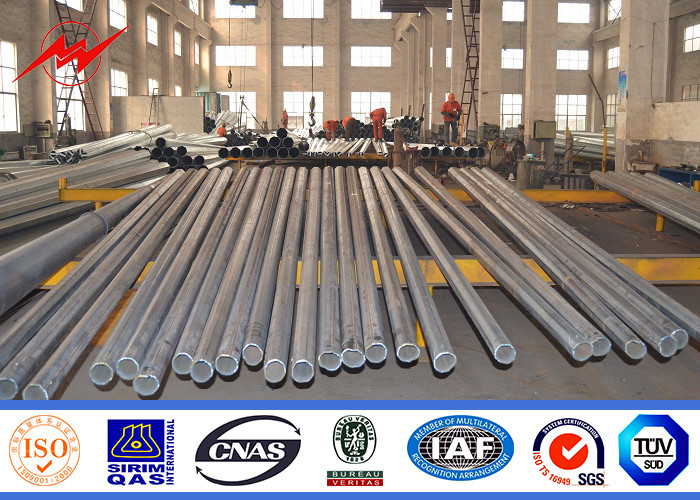

20M 25KN GR 65 Steel Electric Power Poles with Cross Arm Painting
Specification:
| Suit for | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
| Torlance of the dimenstion | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor |
Safety factor for conducting wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding |
|
| Thickness | 1 mm to 30 mm |
| Production Process |
Rew material test → Cuttingj →Molding or bending → |

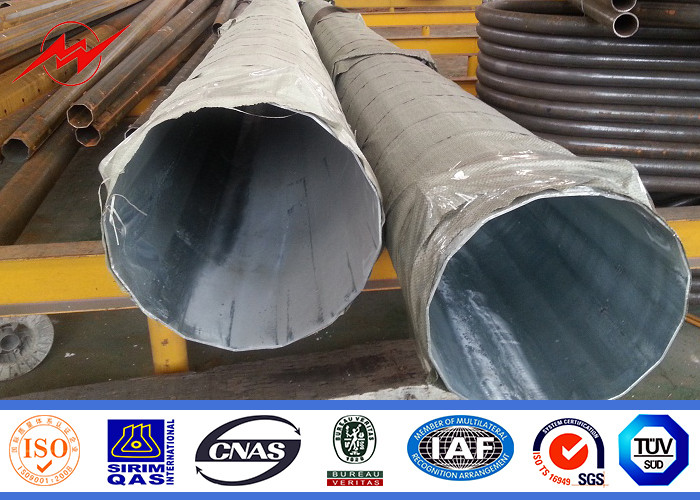

| Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom , |
Material
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Welding
Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard.
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
